波紋管球閥
Bellows Sealed EC11.35
EURO CHLOR
Bellows Sealed Globe Valve
with protected bellows
Product Description
Chlorine bellows sealed globe valves with protected bellows and safety gland packing according to Euro Chlor recommendation GEST 89/140. Pneumatically actuated chlorine bellows sealed globe valve with protected bellows and safety gland packing according to Euro Chlor recommendation GEST 98/247
Typical Applications
Liquid chlorine and dry chlorine gas
Materials
Low temperature carbon steel 1.6220 / LCB / LCC
Other materials are available on special request
Size Range
DN 25, 40, 50, 80, 100, 150 / NPS 1”, 1 ½”, 2”, 3”, 4”, 6”
Other sizes are available on request
Compliance
Chlorine Institute Pamphlet 6 and Euro-Chlor Specification GEST 89/140 and GEST 98/247
Pressure Ratings
PN 40 and class 300
Other pressure classes are available on request
Body Configurations
Straight type
Special Options
Complete internals in 2.4819/Hastelloy C276 are available on request
End Connections
Flange design in accordance with EN 1092-1 and ASME B 16.5
TECHNICAL DATA

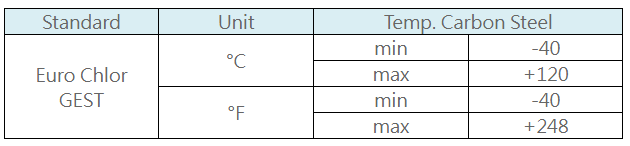

TEMPERATURE RANGE

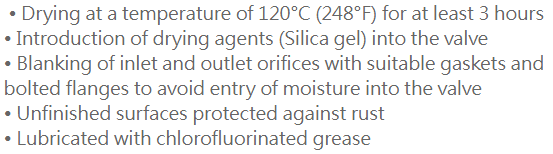

POST-MANUFACTURE HANDLING

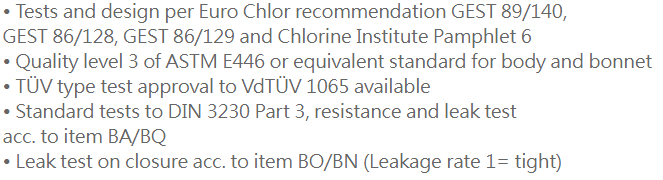

TESTING / MARKING

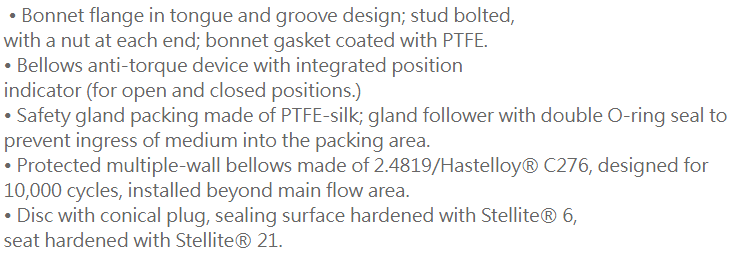

PART MATERIAL
