波紋管球閥
Bellows Sealed 11.3Bellows Sealed Globe Valves
with fully flushed bellows
Materials Of Construction
• Carbon Steel 1.0619 / WCB
• Stainless Steel 1.4408 / CF8M
• Low temperature Carbon Steel 1.6220 / LCB / LCC
• Special materials available on request
Size Range
•DN 15-400 / NPS 1/2”-16”
Pressure Ratings
•PN 16-400 / Class 150-2500
Body Configurations
•Straight type, y-type or corner-typevalve switches
from one side to the other.
Compliance
• Permissible working pressure acc.
EN 1092 part 1 and ASME B16.34-2009
• Face to face dimension acc. EN 558-1,
EN 12982
End Connections
•Flanges, butt weld ends or socket weld ends.

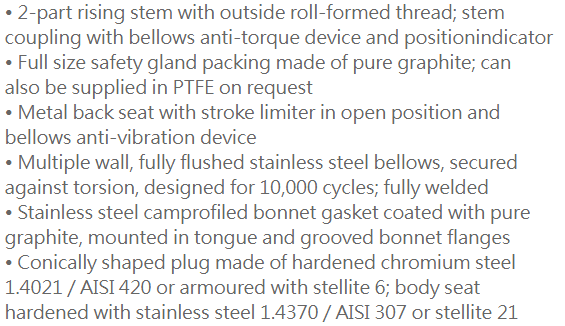

TECHNICAL DATA

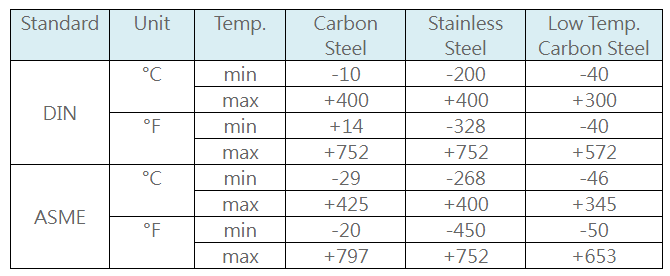

TEMPERATURE

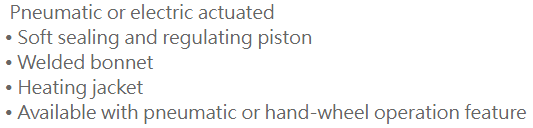

SPECIAL OPTIONS

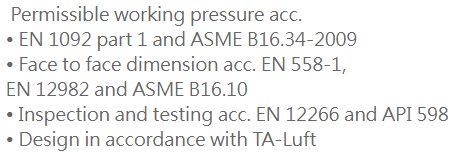

COMPLIANCE

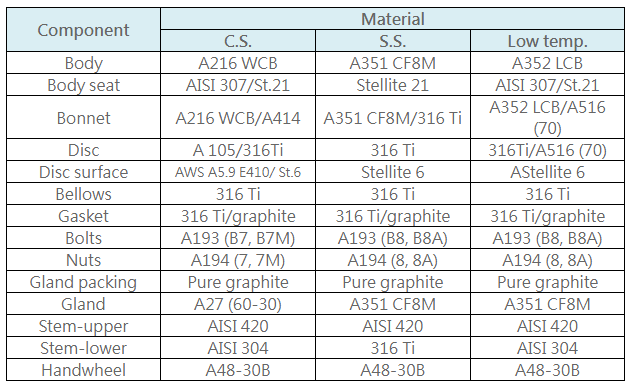

PART MATERIAL
