閘刀閥-Knife gate Valve

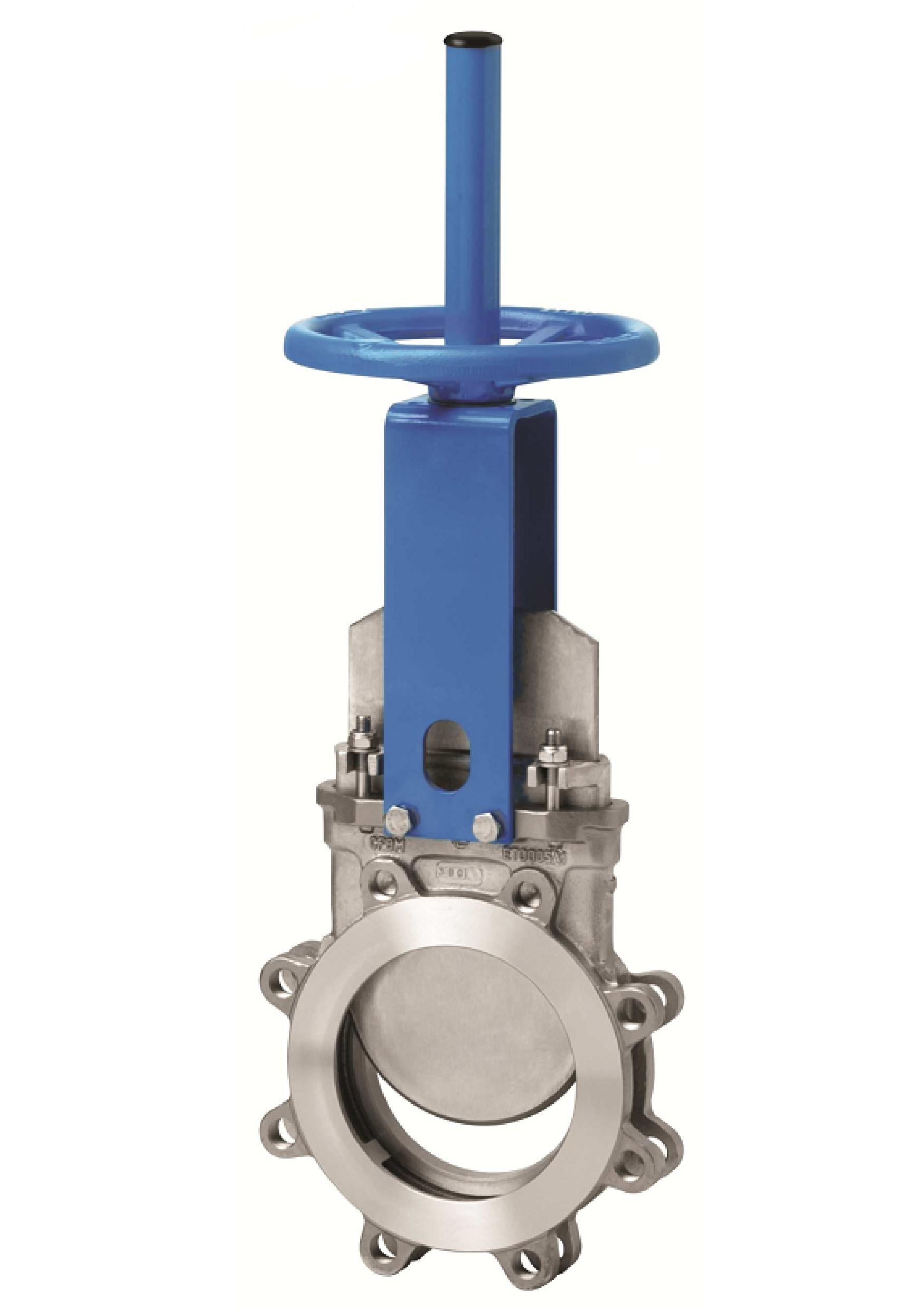

    • HEAVY DUTY KNIFE GATE VALVE
  •
     The ET model knife gate is an uni-directional lug type valve designed according to MSS-SP-81 and
    TAPPI TIS 405-8 for industrial service applications. The design of the body and seat assures nonclogging
    shut off on suspended solids in industries such as:
    • Pulp and Paper
    • Power pla  (larger diameters on request)
    Working pressure:
    DN 50/2” to DN 600/24”          10 kg/cm² / 150 psi
    DN 750/30”                               7 kg/cm² / 100 psi
    DN 900/36”                               7 kg/cm² / 100 psi
    Standard flange connection:
    DIN PN 10 and ANSI B16.5 (class 150)
    Directives: 2006/42/CE (MACHINES)
    97/23/CE (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
    94/9/CE (ATEX) replique montre omega
