減壓閥

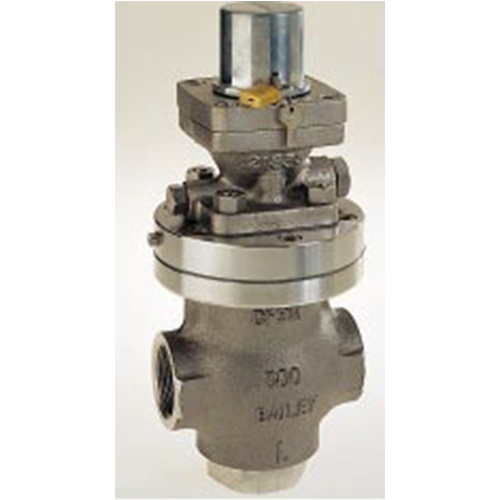

G4 Pressure Reducing Valves

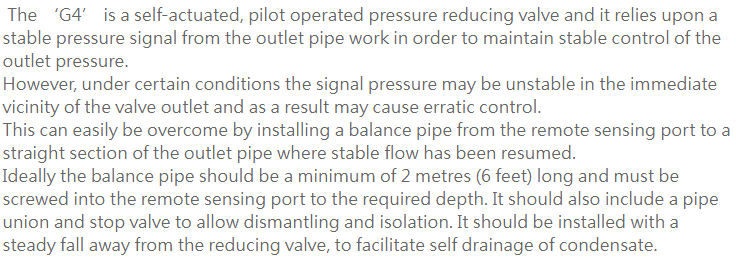

The G4 Series of pilot operated pressure reducing valves provide extremely accurate levels of pressure regulation for steam, clean steam, air and industrial gas applications. This is accomplished with a highly sensitive pilot which continuously monitors both inlet and outlet pressures simultaneously. The result is a constant outlet pressure, irrespective of erratic inlet pressure or systems demand. The G4 is also available for pressure sustaining / maintaining applications.
For Steam Applications

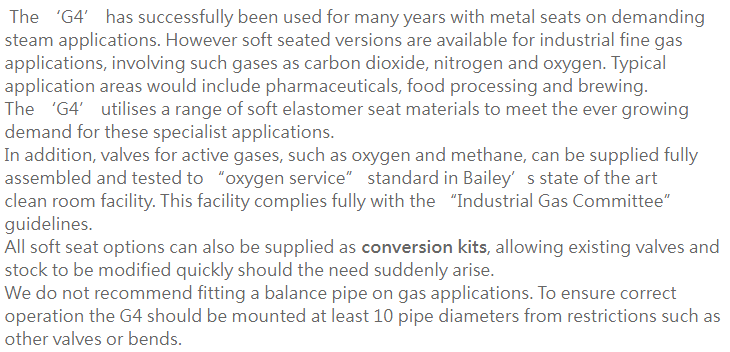

For Gas And Oxygen Application

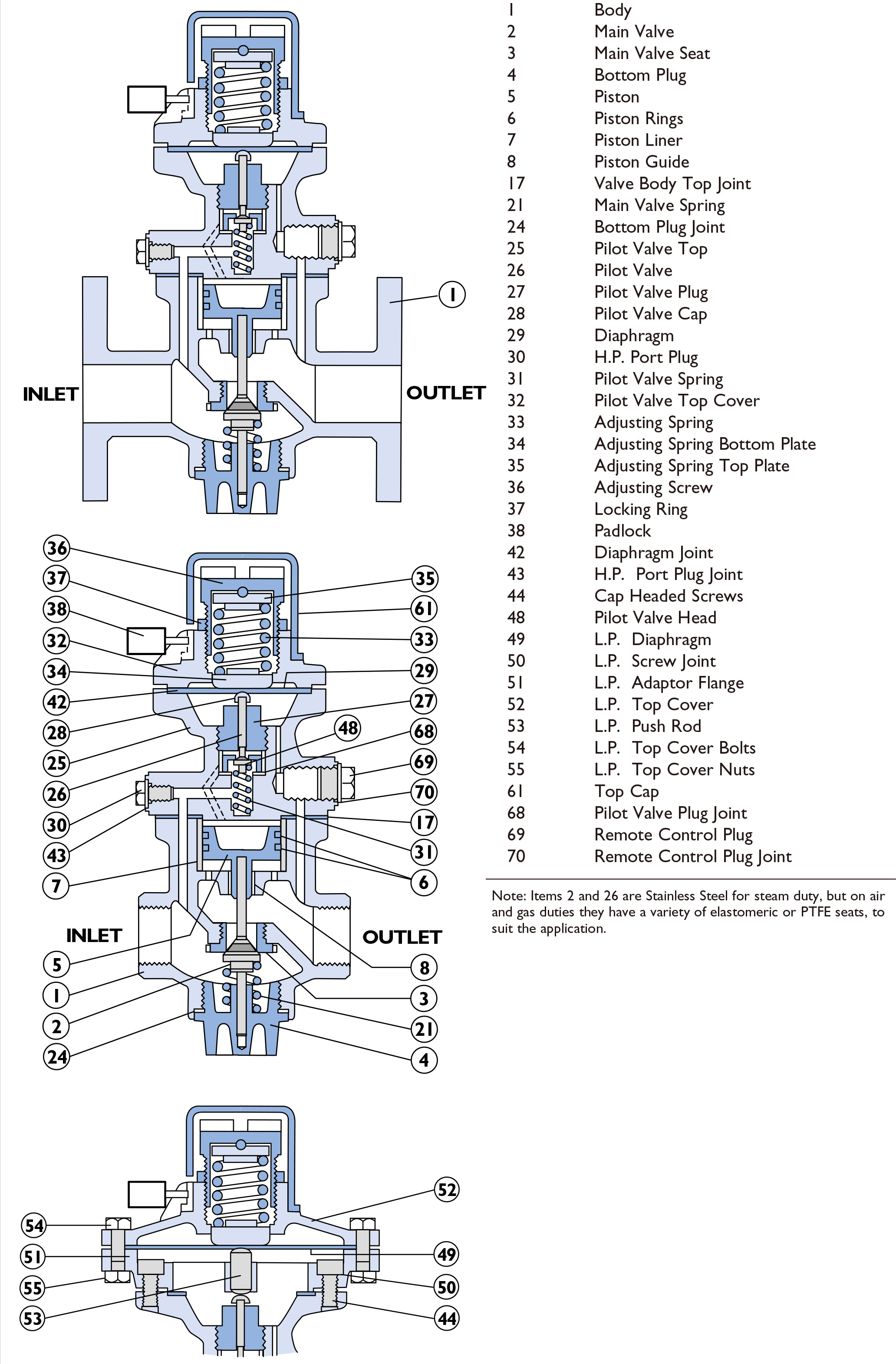

Parts

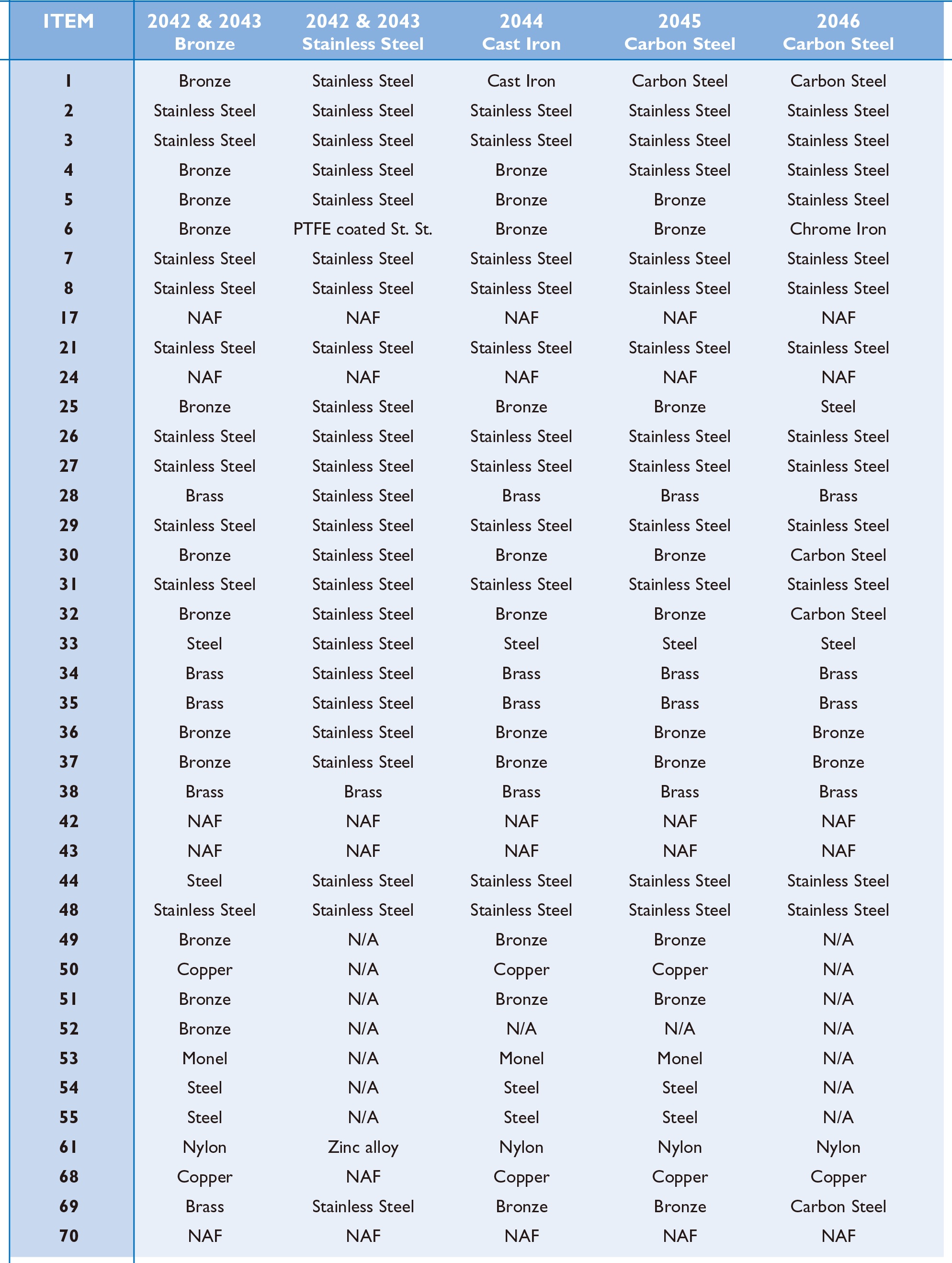

Material

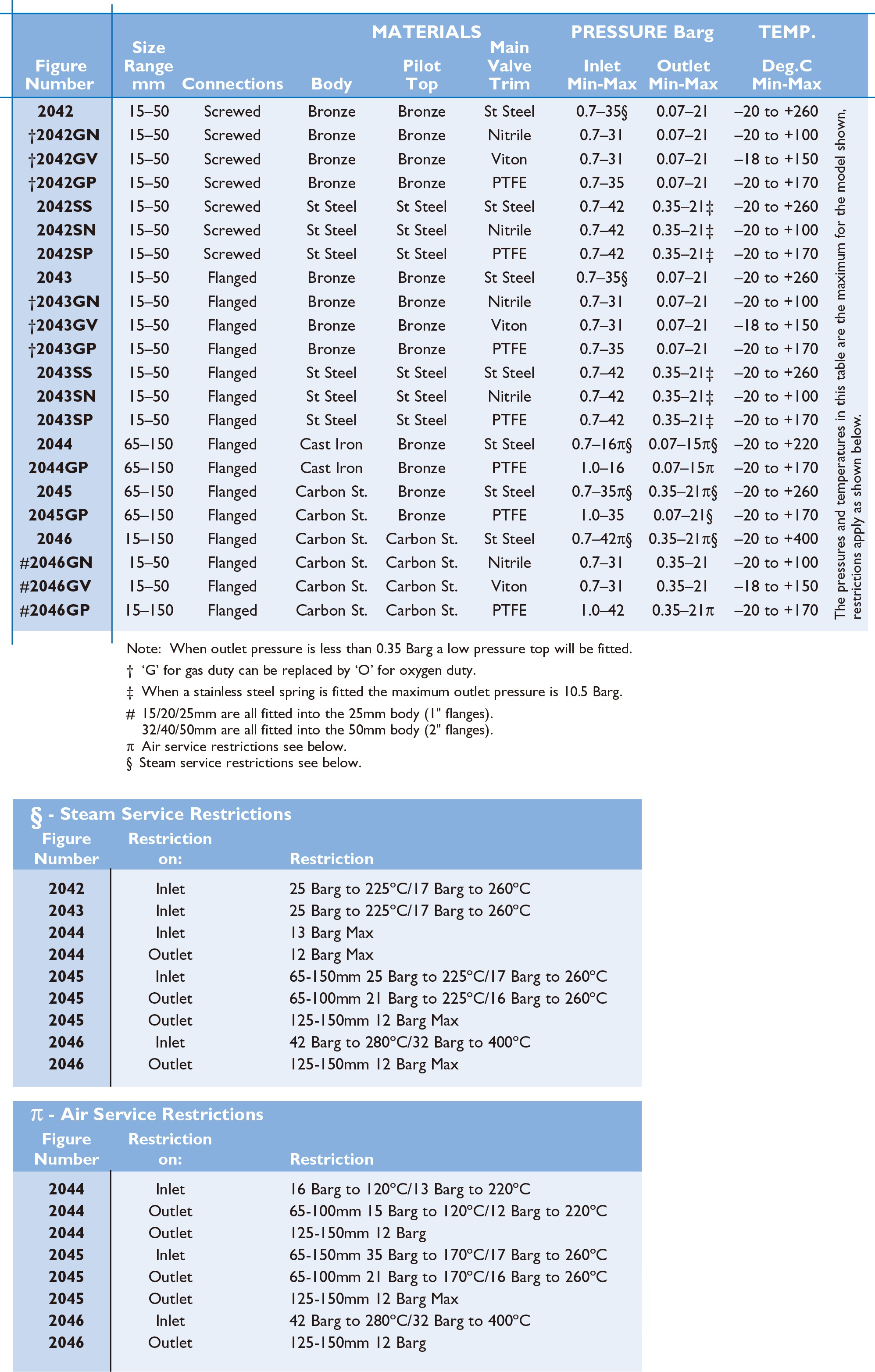

Technical Data
