減壓閥

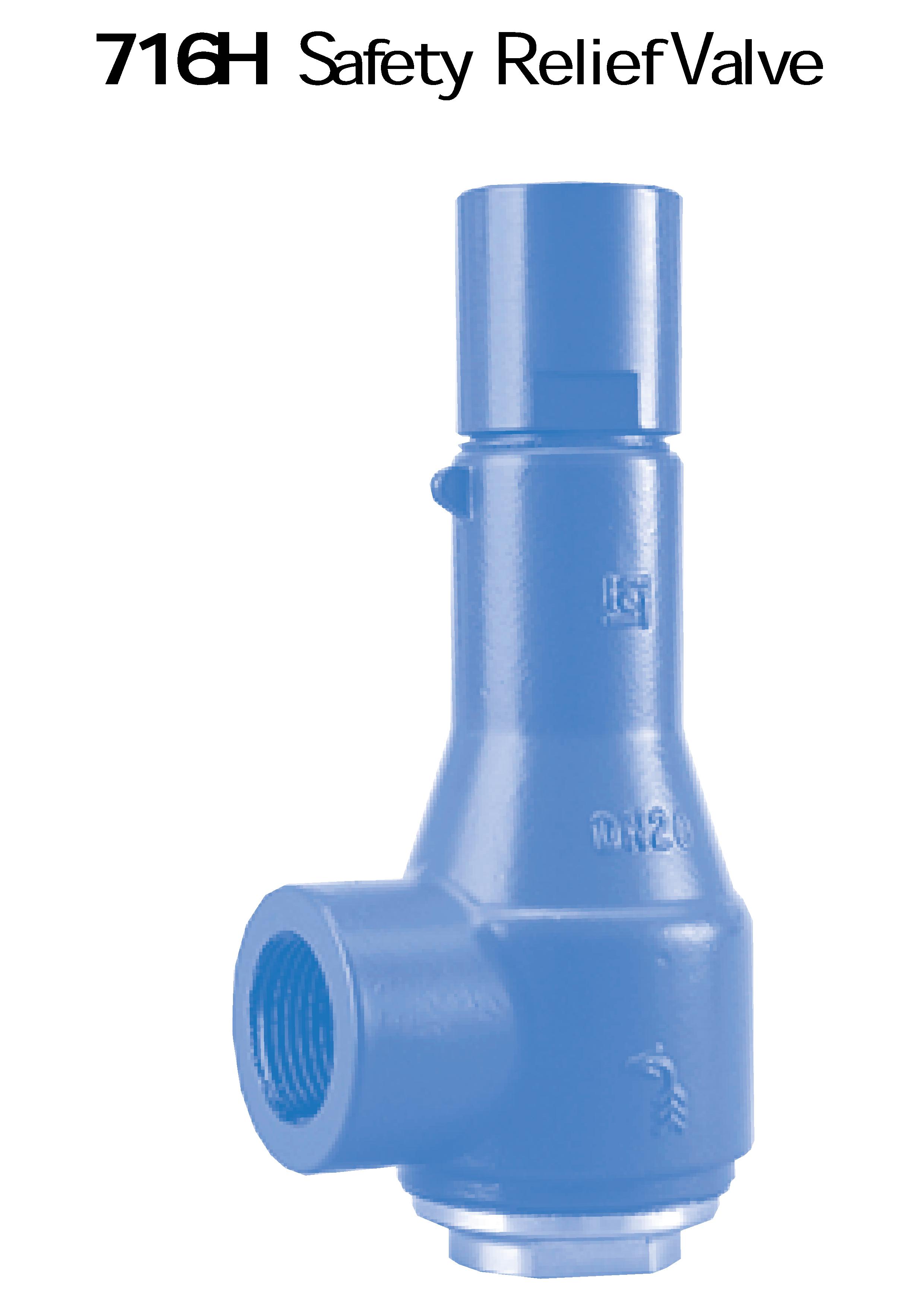

716H Safety Relief Valve
The figure 716H safety relief valve is a high pressure version of the popular 716 valve.
Pressures up to 102 Barg (orifice dependent) can now be accommodated in two high grade materials,Carbon Steel A216-WCB and Stainless Steel A351-CF8M.
The 716H is certified to the ASME VIII code for the full range of flowing media.

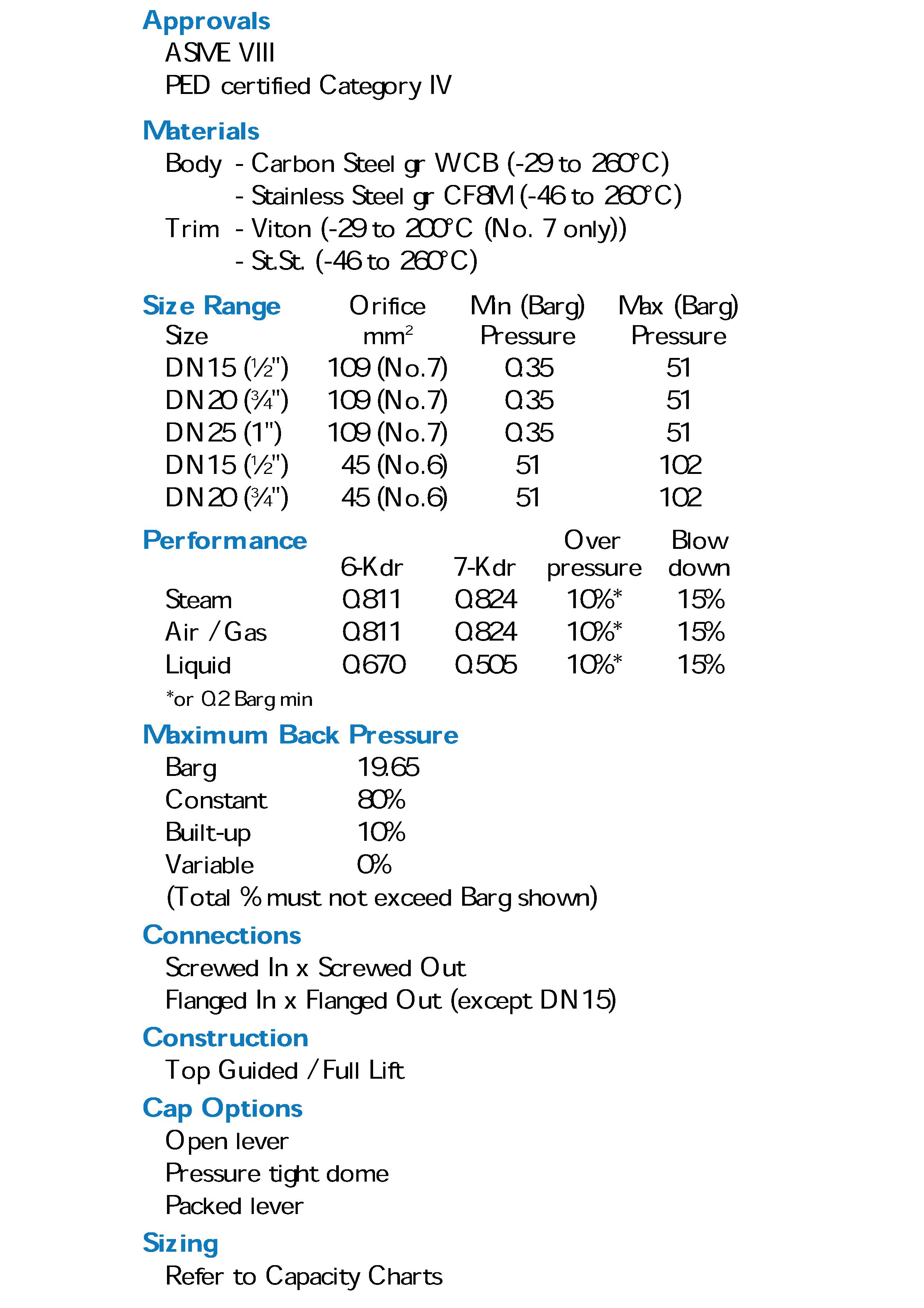

TECHNICAL SPECIFICATION

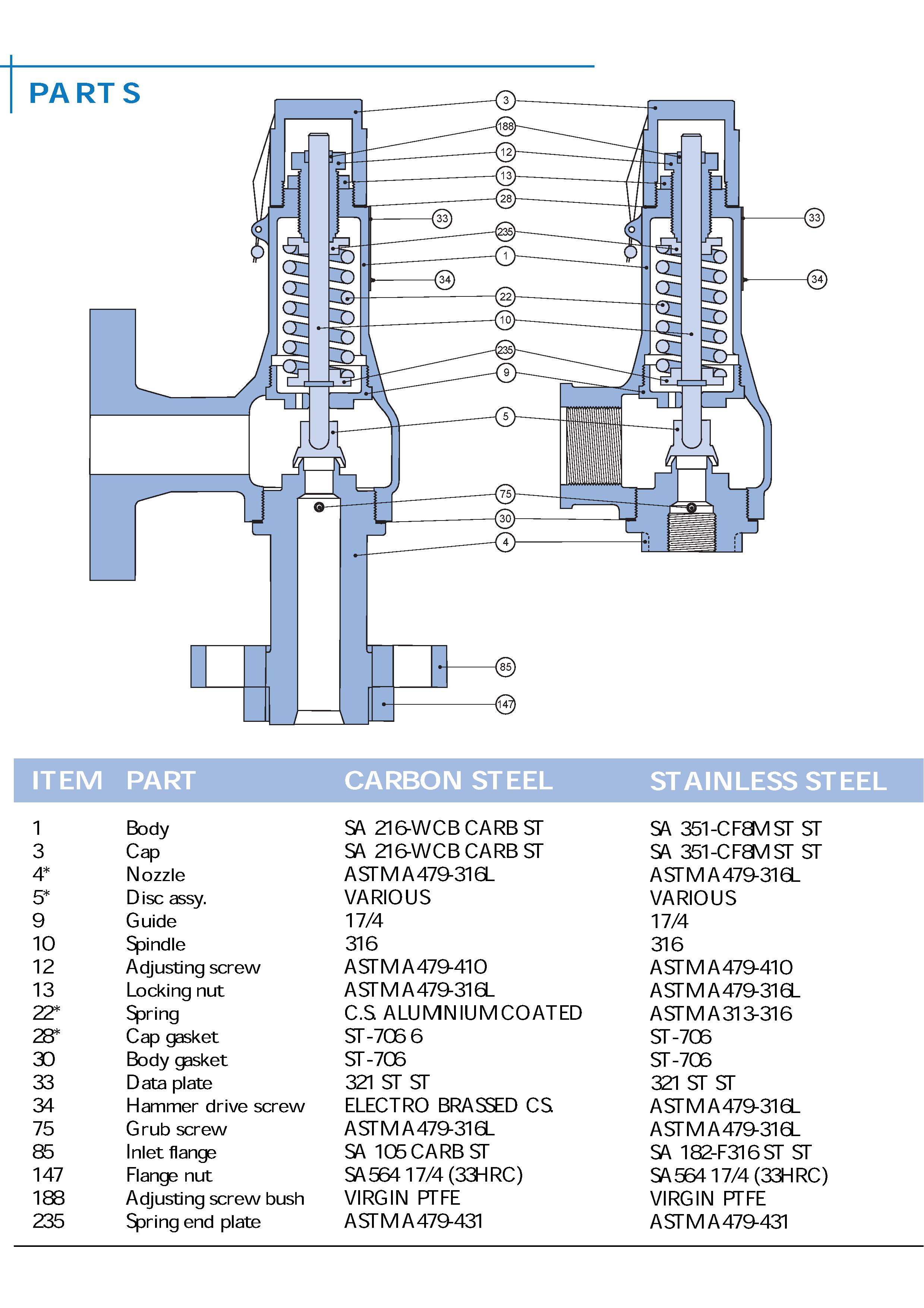

Parts Material

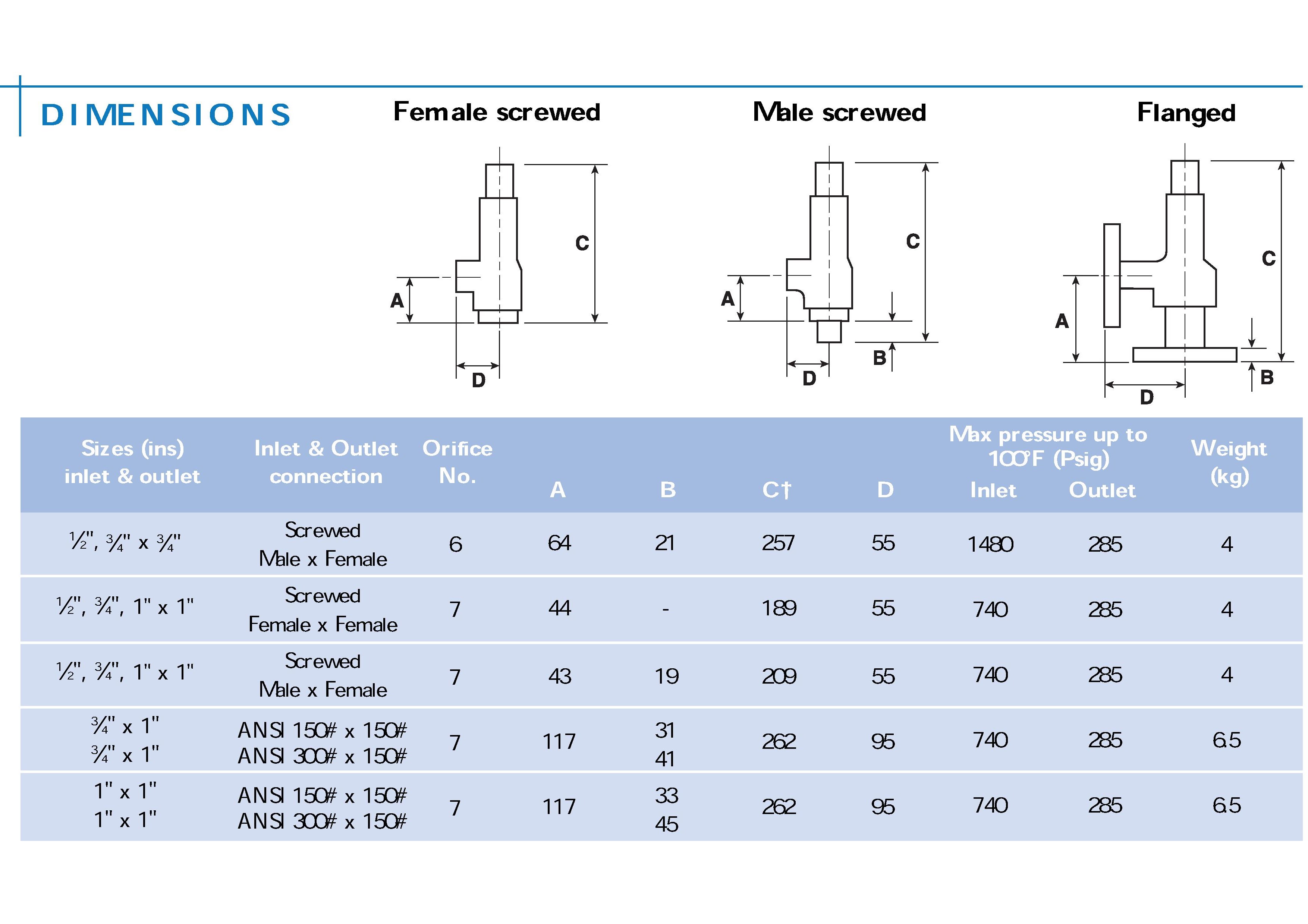

Dimension

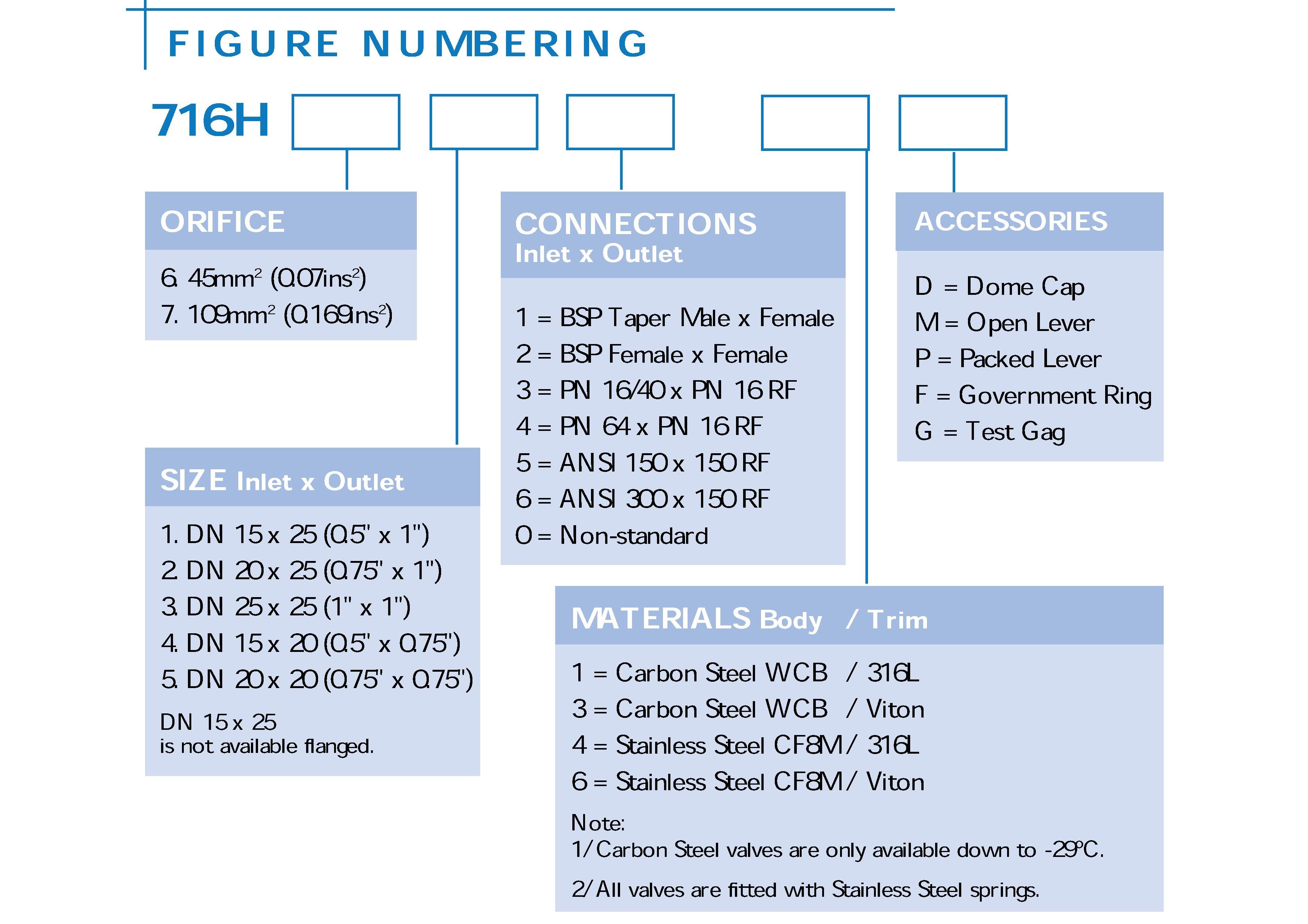

Figure numbering
