膜片閥-Diaphragm Valves A-type
    • Baffle seals T4

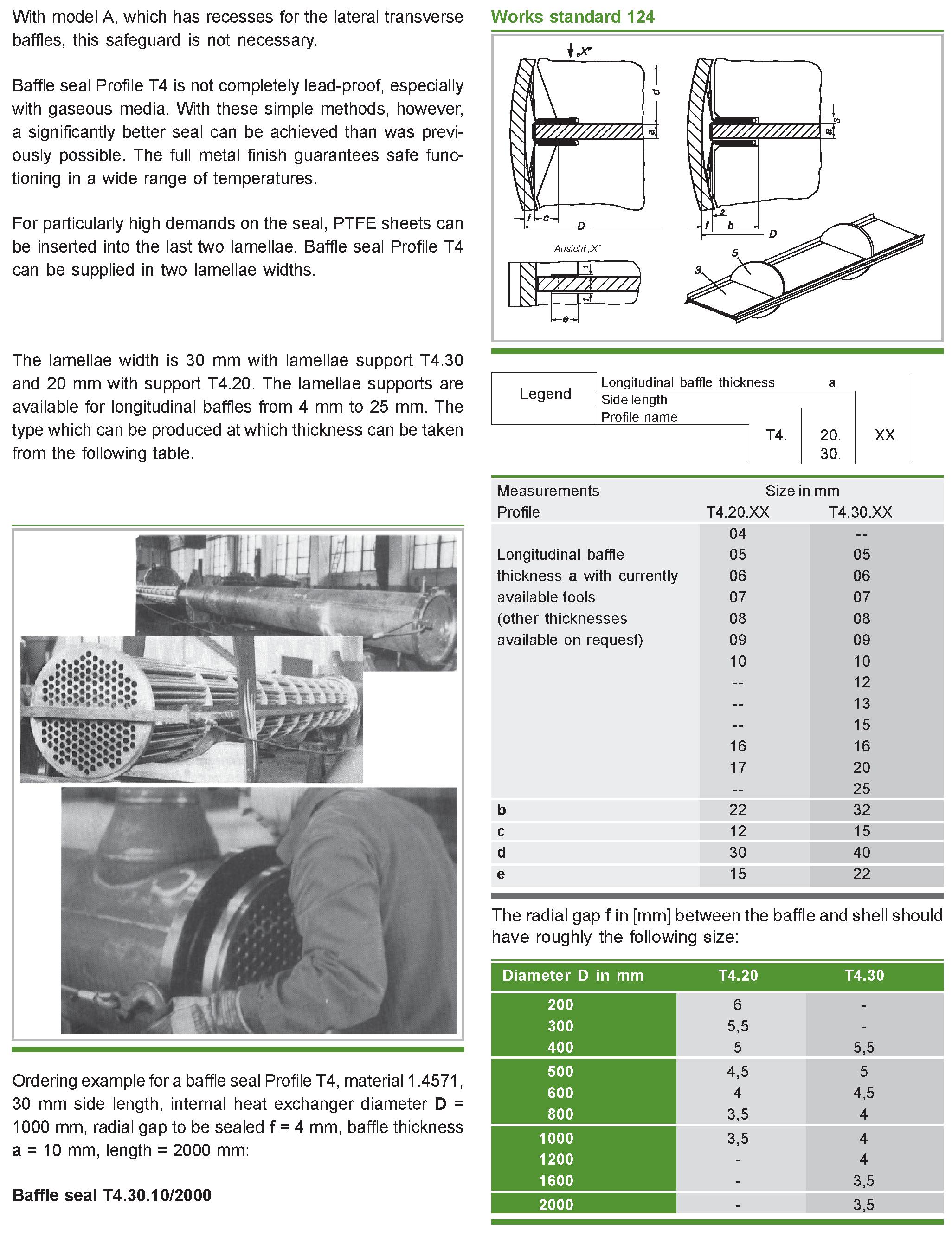

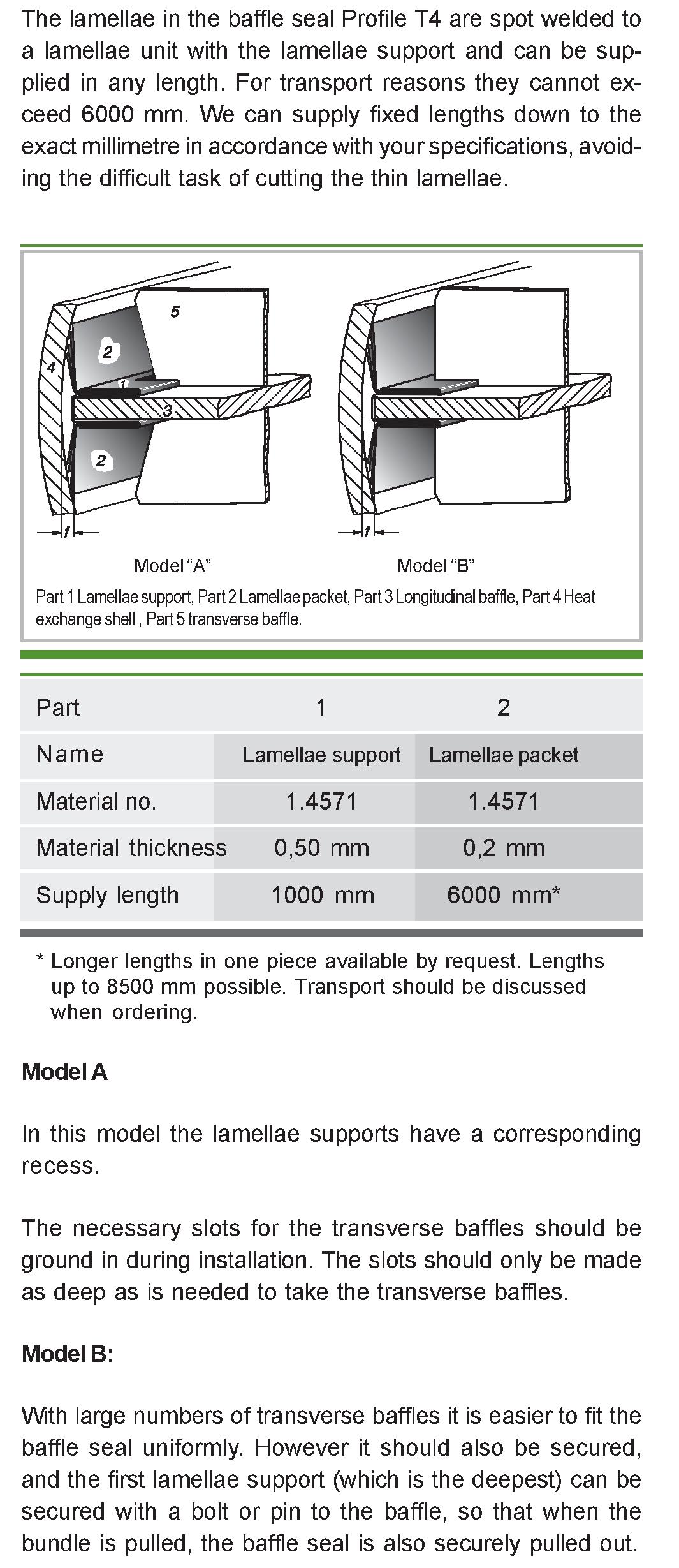

    • Baffle seals T4 for sealing longitudinal baffles in high-performance heat exchangers. Baffle seals Profile T4 is a full metal seal. It is generally made from 1.4571 steel for the lamellae supports and for the lamellas themselves. On request and with larger orders, these seal can also be produced from other spring-elastic steels or non-ferrous metals.

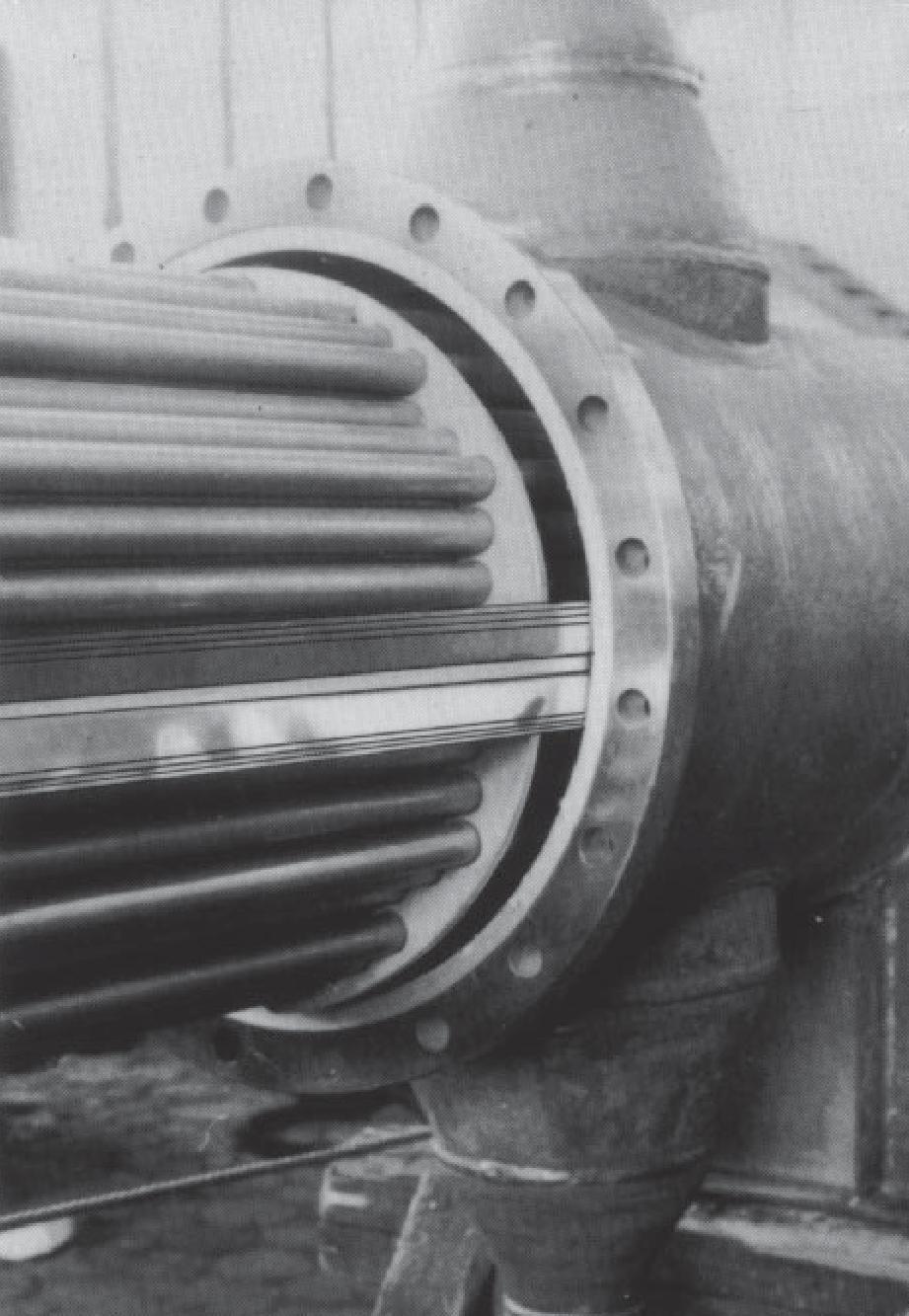

      The baffle seal plays an important role in effectively sealingthe gap between the longitudinal baffle and the heat exchanger shell in high-performance heat exchangers. In particular,where there are small differences in temperature,even low short-circuit currents can cause a significant loss of function. This can largely be avoided by using the baffle seal T4. The T4 seal is easily assembled directly onto the
      longitudinal baffle. No bolts are required to affix it. This means that there is no need to bore holes or do any of the usual bolting jobs during assembly.
