膜片閥-Diaphragm Valves A-type
  • Diaphragm Valves PVDF-HP

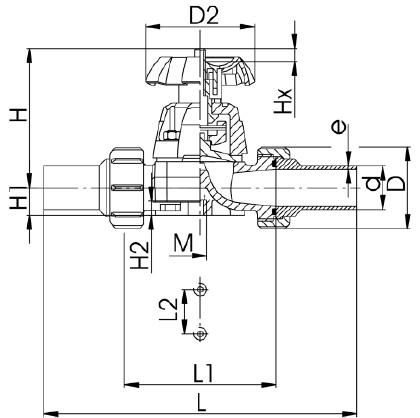

  •  Type 314 True Union Diaphragm Valve
  • Model:
    • Material: PVDF-HP
    • Diaphragm PTFE with EPDM backing diaphragm
    (FDA compliant)
    • Designed for easy installation and removal
    • Short overall length
    • Welding dimension: PN16
    • Also suitable for IR welding
    Option:
    • Handwheel with built-in locking mechanism
    (standard version is nonlockable)

• completely controlled process
• world's largest cleanroom dedicated to Fluoropolymer manufacturing
• stringent Particle Control
• superior leachout characteristics for TOC, Metals, Anions
• smoothest surface quality
• industry`s benchmark IR Plus welding technology
• safe and reliable system

• corrosion resistant and high pressure rating
• high efficiency due to doubled flow factor, linear valve characteristics
• smallest possible dead legs
• user friendliness due to lockable handwheel and two colour indicator
• wide selection of material for best chemical resistance
• flow in either direction irrespective of installation position
• integrated fixation system with mounted threaded inserts
• suitable for slurries and abrasive media
